Rolex Rare 5035, 5055 Electronic module, circuit Ref 6005, oysterquartz watches 17000, 17013, 17014, 19018, 19019, 19018

Rare Electronic modul Rolex watches caliber.

NEW & UNWORN.

Fits on Rolex oysterquartz Datejust & Day Date watches :

#17000, 17013, 17014, 19019, 19018, 19028, 19048, 19049, 19149

History :

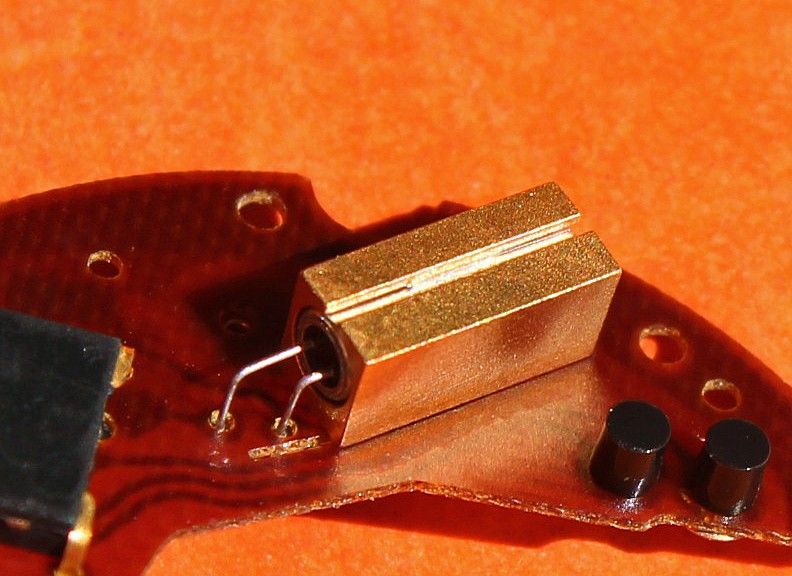

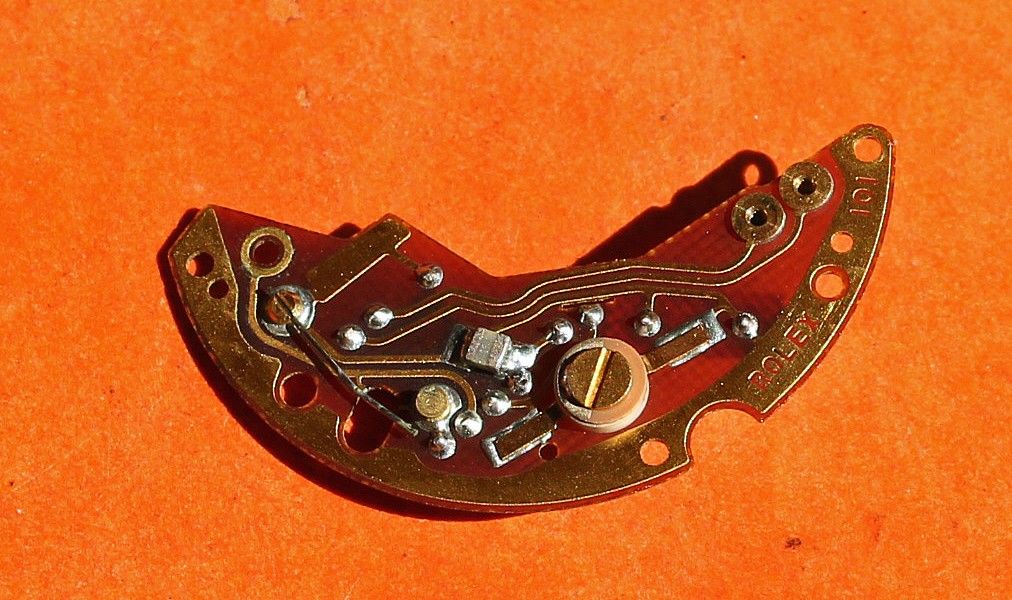

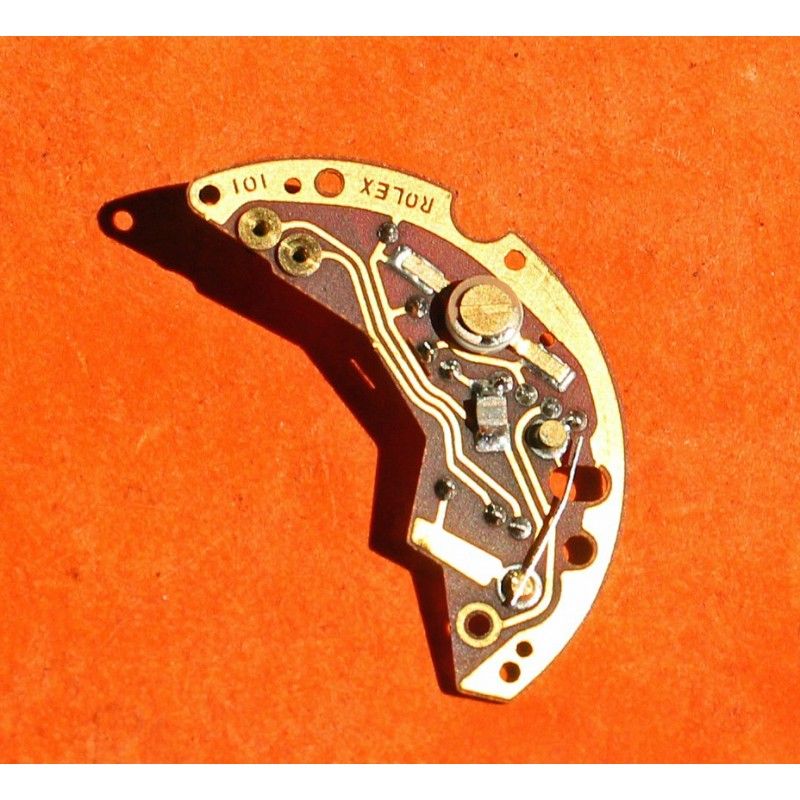

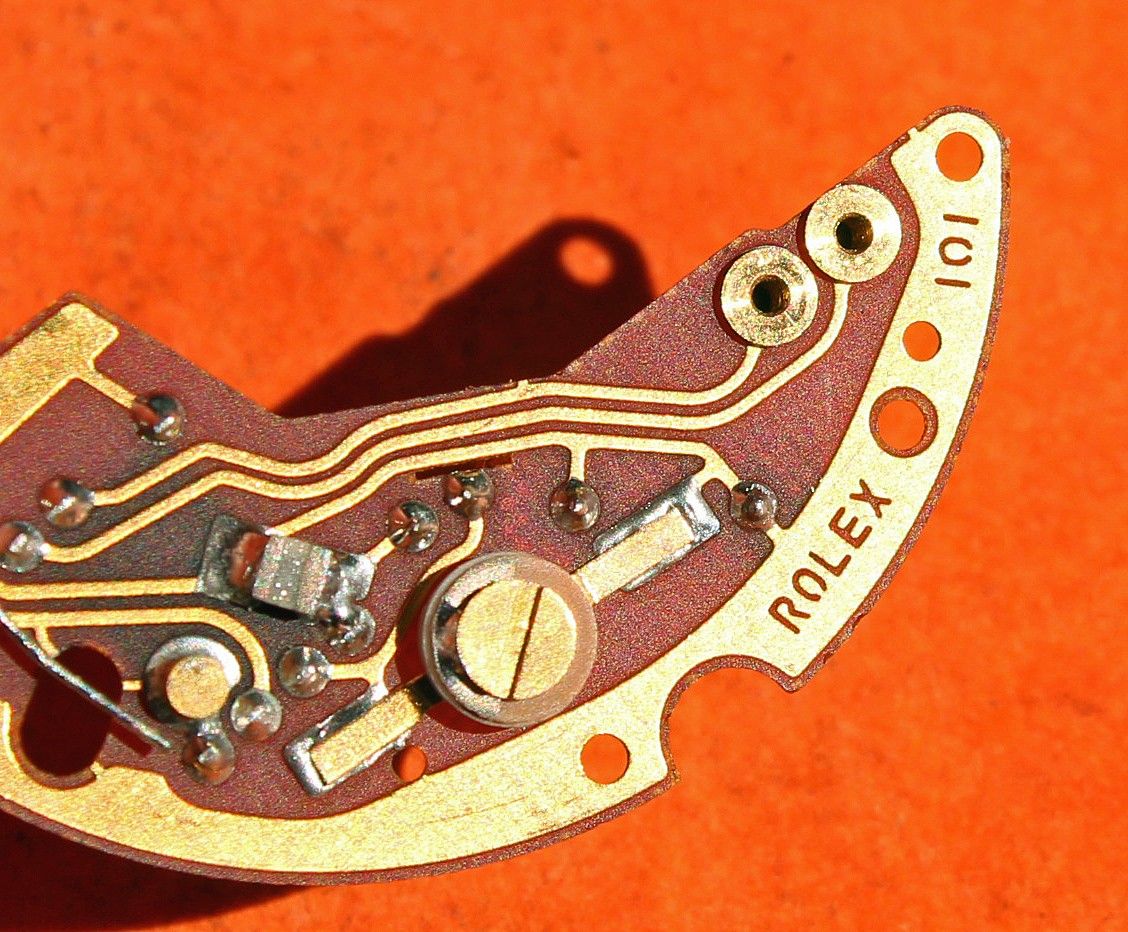

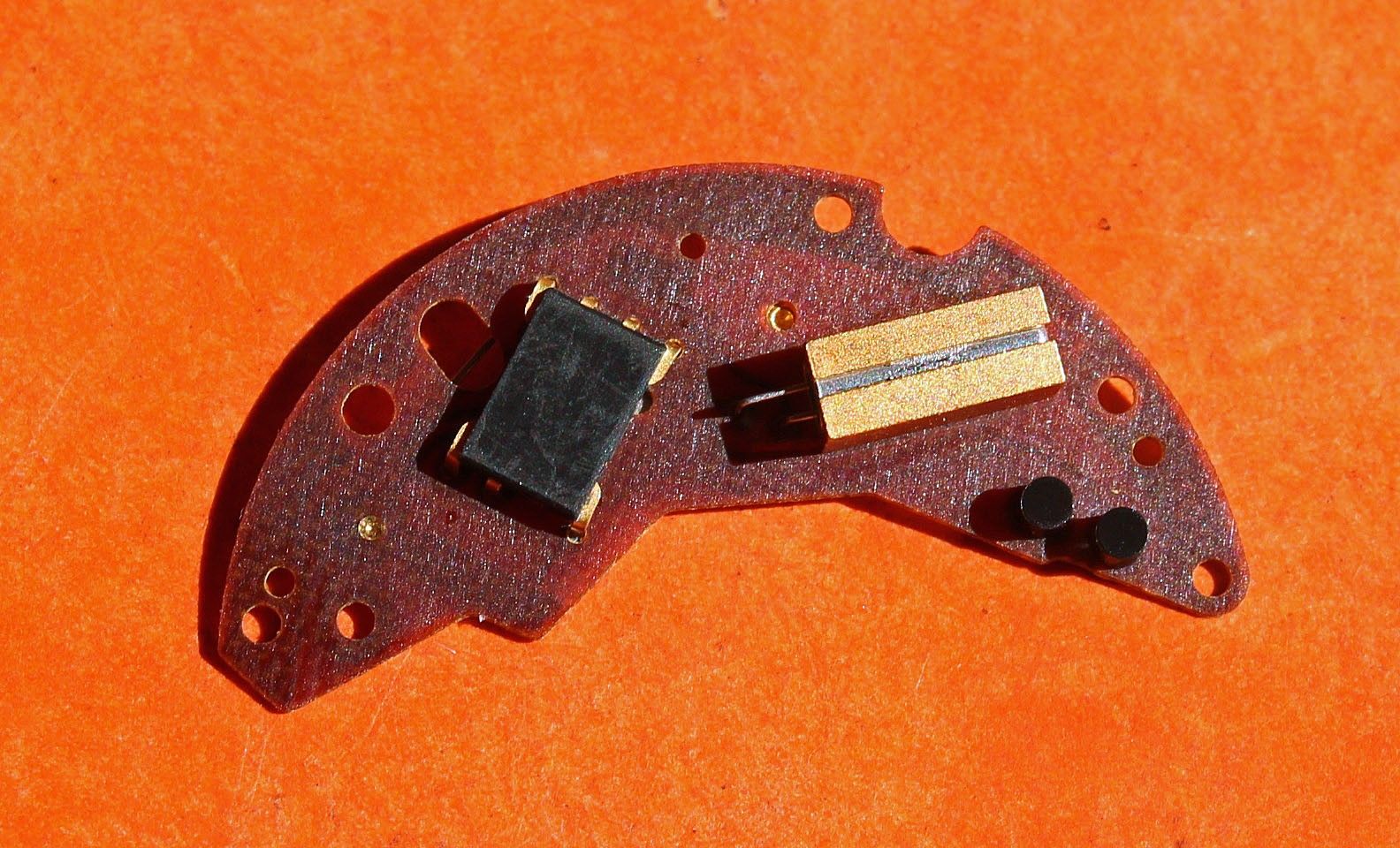

In moving away from the First Generation quartz technology that characterized the Beta 21 and other early quartz movements, Rolex recognized that two key elements to superior accuracy in quartz timekeeping would be needed in their new quartz movement: A higher frequency oscillator and some means to negate the effects of temperature change on the stability of the oscillator. Consequently, the oscillator used in the 5035/5055 was four times as fast as that used in the Beta 21 and the module was one of the first quartz movements to utilize analog thermocompensation. Oscillator stability over a wide temperature range was accomplished through the use of a thermistor to sense ambient temperature.  Data from this sensor is sent to the electronic control module which then regulates the voltage to the quartz crystal, adjusting its rate accordingly.  In addition, a rate trimmer is employed on the circuit board which enables the movement to be manually "fine tuned" during Rolex's notoriously rigid internal testing and adjustment, something every Rolex movement goes through before being sent to the COSC for "official" chronometer certification.

The rate trimmer also allows for manual  adjustment when the movement is serviced to compensate for the frequency drift that comes with the aging of the quartz crystal.

Approximately eighteen months after the Oysterquartz was introduced the quartz crystal used in the oscillator circuit was changed to a tuning fork shape. The earlier movements were known internally at Rolex as Mark I movements, while the later ones with the new shape quartz crystal were known as Mark II movements.

The Mark I 5035 Datejust movements were never submitted to the COSC for chronometer certification, which accounts for the absence of "Superlative Chronometer Officially Certified" on the dials of the very early Oysterquartz Datejust models.

Everything about the design and construction of the 5035/5055 module shows that Rolex intended this movement to be a "lifetime" movement, designed to be serviceable and serviced just like their mechanical movements. In fact, apart from the electronics and the pulse motor, the "mechanics" of the 5035 are the same as the 3035 automatic movement that was also introduced in 1977 and used in the Submariner and other Date/Datejust models for over a decade.

The drive mechanism for the 5035/5055 is very similar to the design of a traditional mechanical watch escapement.  The pulse motor drives a pallet fork which in turn moves a pallet wheel.  This wheel drives the second hand at a 1:1 ratio with one tick per second.  The hour and minute hands are driven off this pallet wheel.

The loud "tick" you hear every second are the pallets engaging the pallet wheel.  That is why the tick of the 5035/5055 has such a unique sound and is very much like the tick of a mechanical watch, though at one tick per second rather than the eight ticks per second of a 28,800 bph Rolex Perpetual movement.

This drive mechanism also ensures the second hand steps around the dial smartly with zero backlash since the hand is effectively locked in place by the pallet fork in between each beat.

5035 Specifications:

32,768Hz VCTCXO Quartz Module

Integrated circuit: CMOS

Temperature compensation: Yes

Rate trimmer: Yes

Power source: UCAR 357 silveroxide battery, 1.55v

Width: 29.75mm

Height: 6.5mm

11 jewels

Antimagnetic: Yes, to 1000 Oersted

Hacking: Yes

Quick set date: Yes

5055 Specifications:

32,768Hz VCTCXO Quartz Module

Integrated circuit: CMOS

Temperature compensation: Yes

Rate trimmer: Yes

Power source: UCAR 357 silveroxide battery, 1.55v

Width: 29.75mm

Height: 7.1mm

11 jewels

Antimagnetic: Yes, to 1000 Oersted

Hacking: Yes

Quick set day-date: Yes

 GUARANTEED TO BE 1OO% AUTHENTIC ROLEX PART

PERFECT FOR RESTORE OR REPAIR ROLEX OYSTERQUARTZ WATCHES.

RARE TO FIND DON'T MISS IT!!
